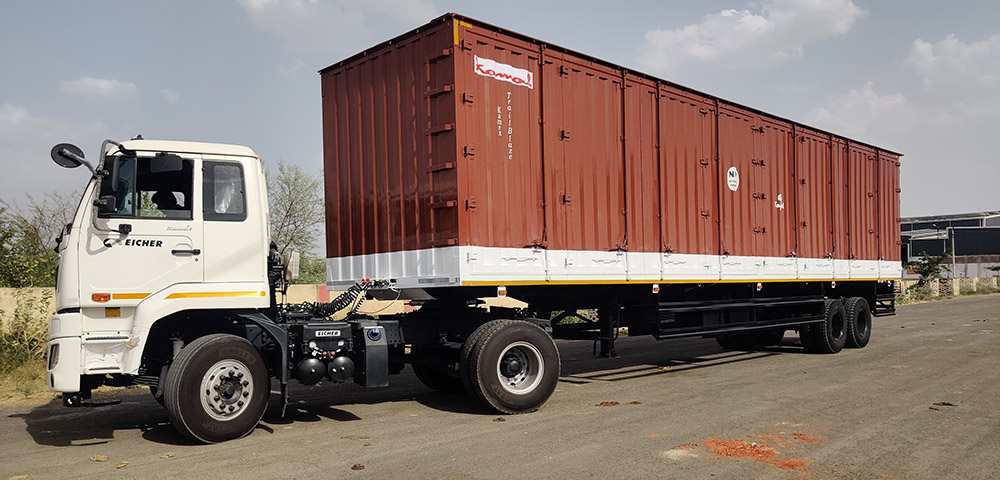

Our Container Trailers offer a secure and efficient way to transport ISO containers, providing a reliable solution for intermodal cargo transport. Designed for seamless container transport, they feature robust construction, adjustable lengths, and optimized payload capacity, ensuring efficient and reliable cargo delivery. With exceptional strength, durability, and customization options, our Container Trailers maximize your intermodal cargo transport capabilities, tailored to meet the unique demands of your business.
Length: |
20,24,30,32 to 41ft |
Width: |
8ft |
Height: |
8ft 6in |
Wall Material: |
Corrugated steel |
Roof Material: |
Corrugated steel |
Floor Material: |
Wooden or steel flooring |
Chassis: |
Chassis is Constructed Using 2 Nos. of Longitudinal Fabricated Members with high-strength steel (ST-52.3). Upper flange 10mm, web-08mm,Lower flange 16mm, Beam height 450mm. |
Landing Leg: |
Two-speed landing leg at the front end |
Axles: |
12T/14T/16T (YORK/Kross/TATA/HENDRICKSON) |
King Pin: |
2” king pin equivalent to IS: 6763 Part I |
Suspension: |
Heavy-duty tridem/tandem/tandem + lifting combo axle |
Brakes: |
Twin/Webco line air brake system with coupled tractor brake system |
Paint: |
The coating process involves shot blasting, followed by primer, and finally paint |
Electrical System: |
24V or 12V |
Lighting: |
LED or halogen lights Safety Features |
Reflectors and Markings: |
As per regulations |
| Non-interrupted performance | Easy to load and unload | ||
| Enhanced durability | Sturdy construction | ||
| Corrosion resistance | Long service life |
