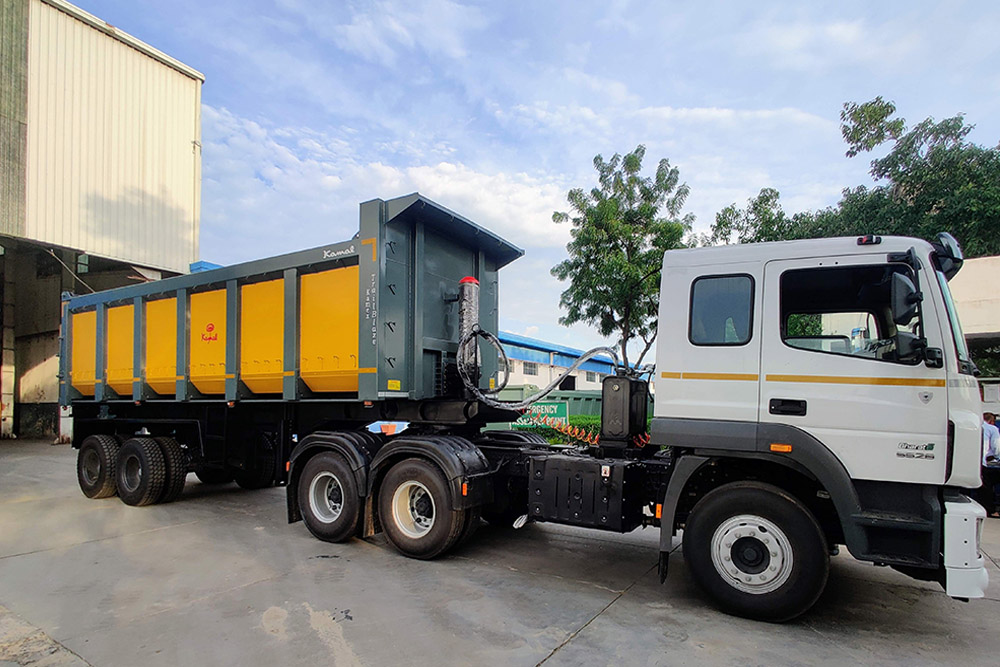

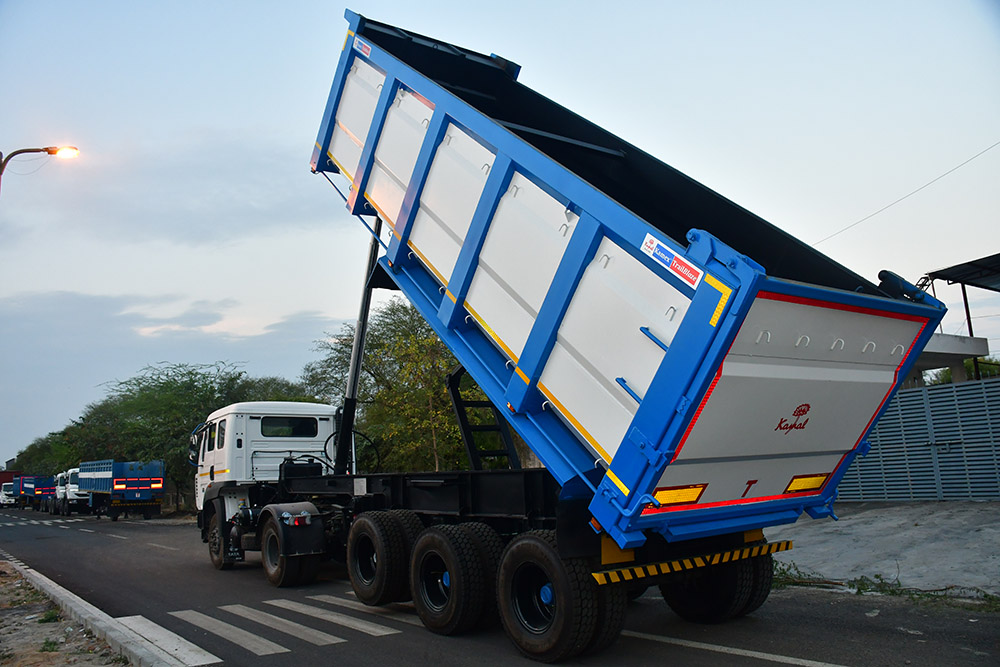

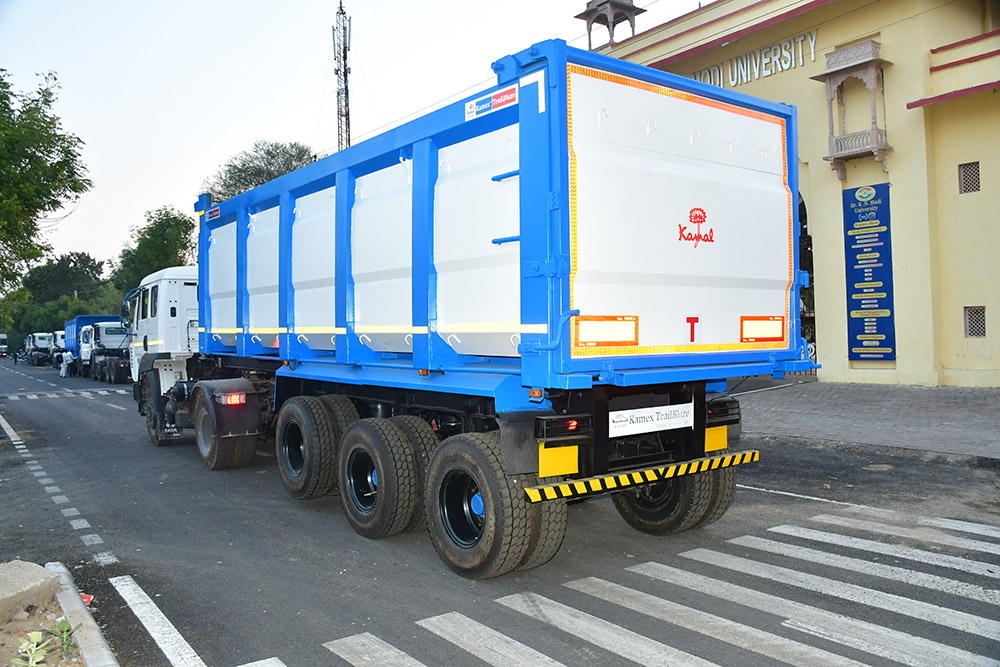

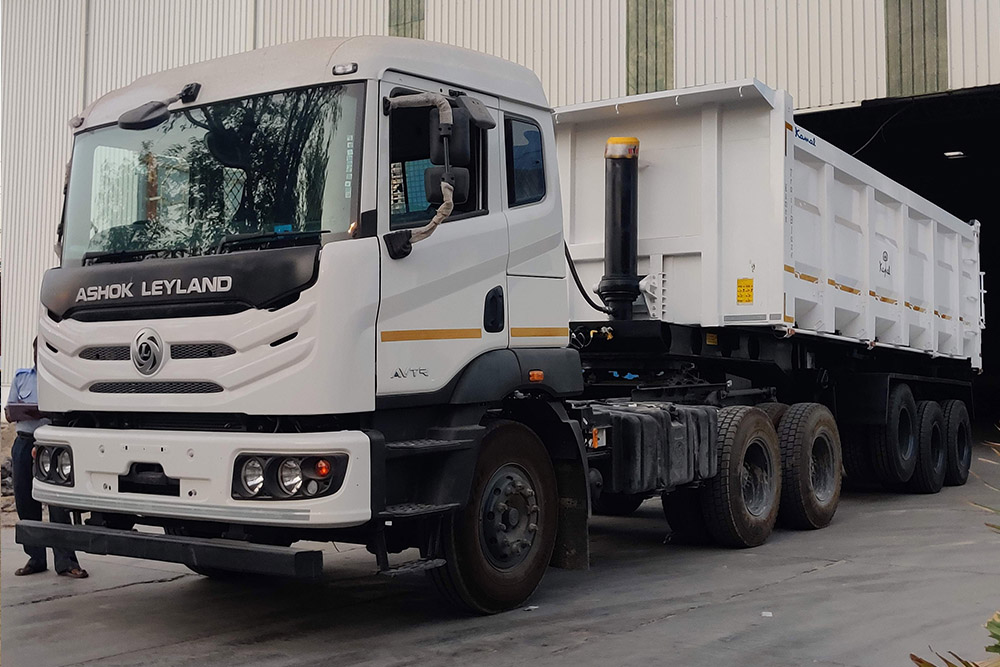

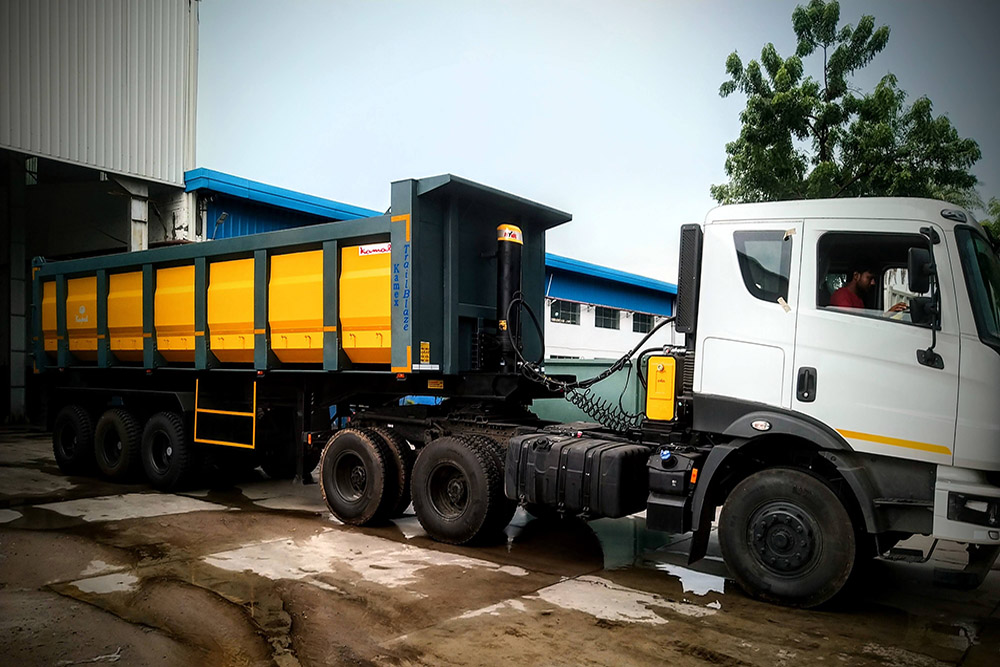

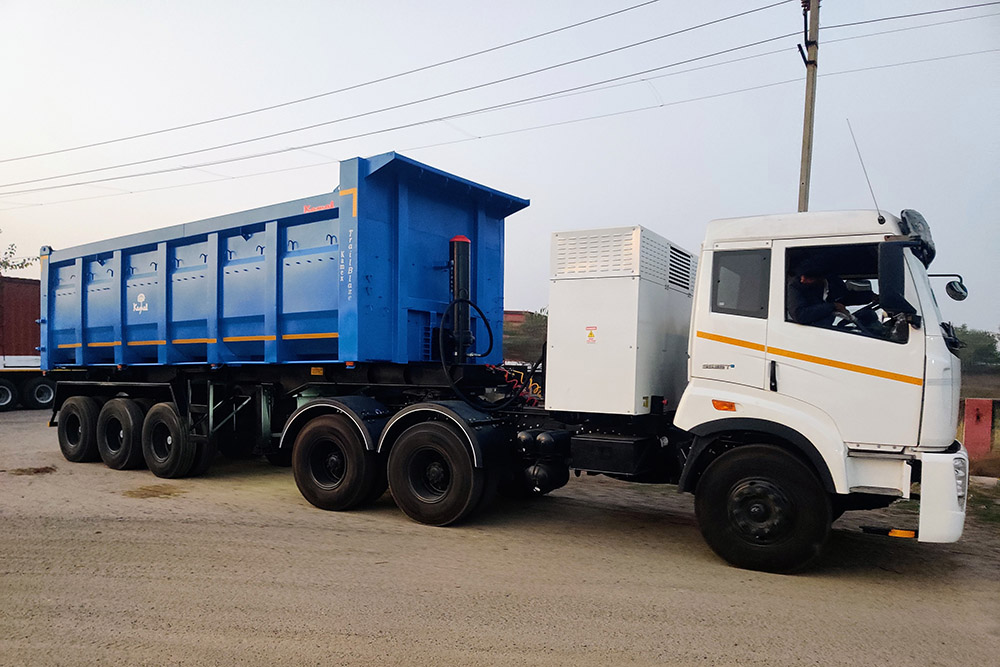

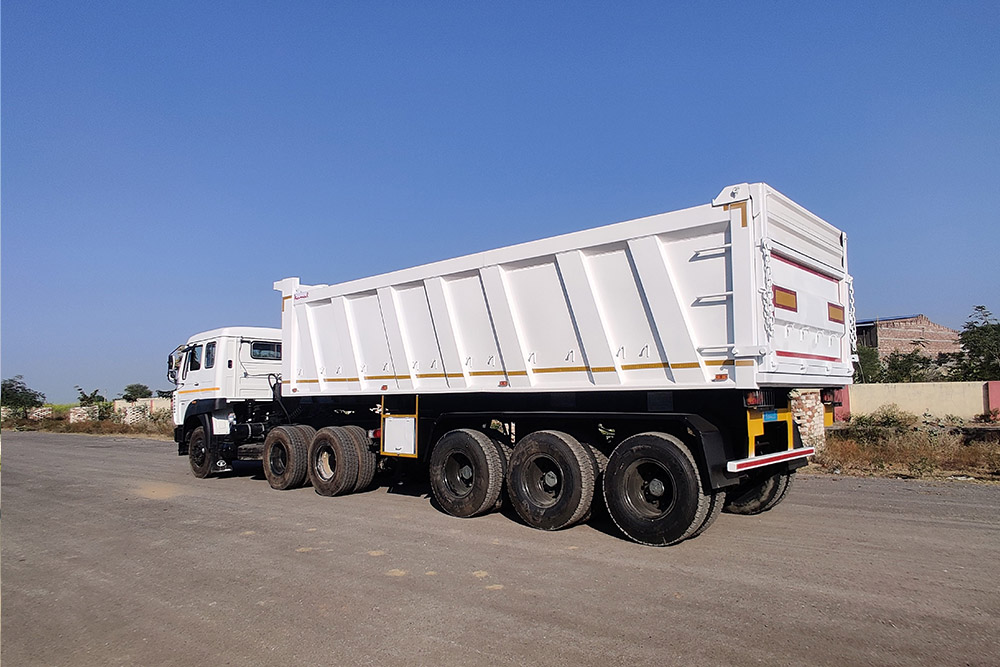

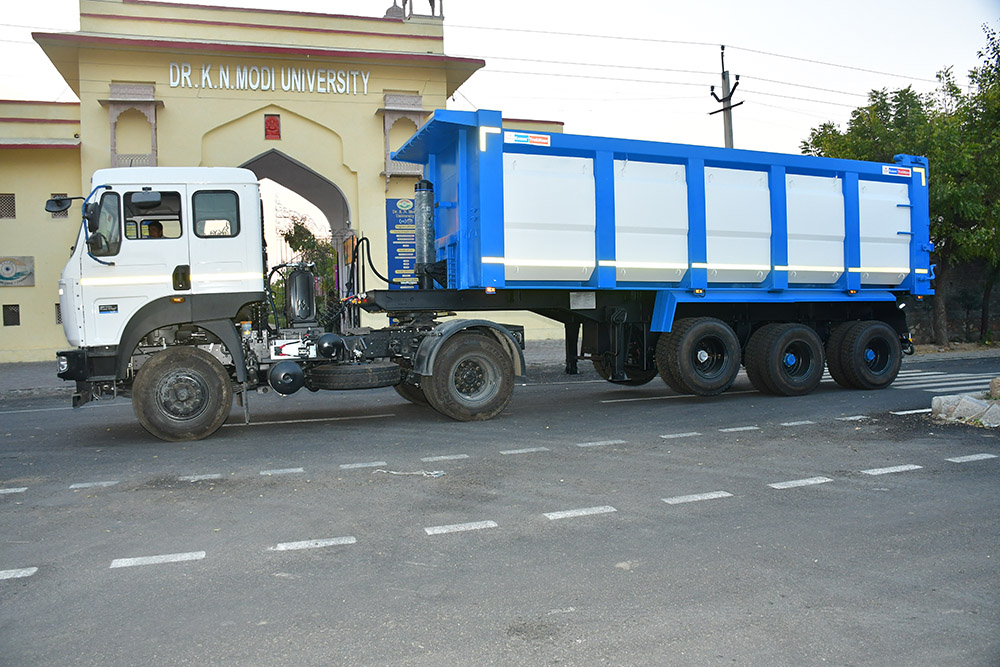

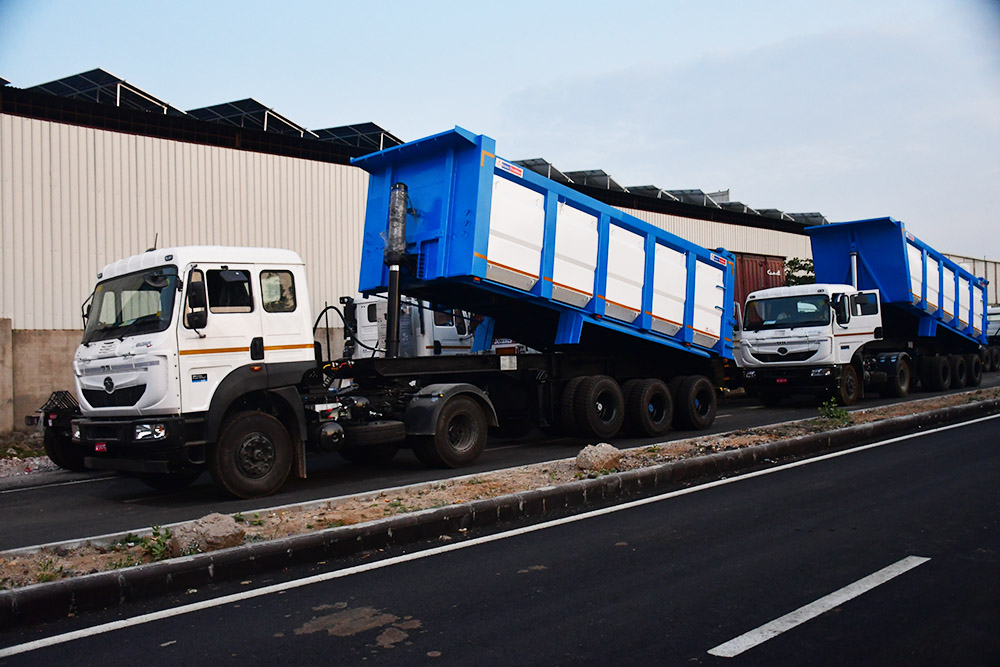

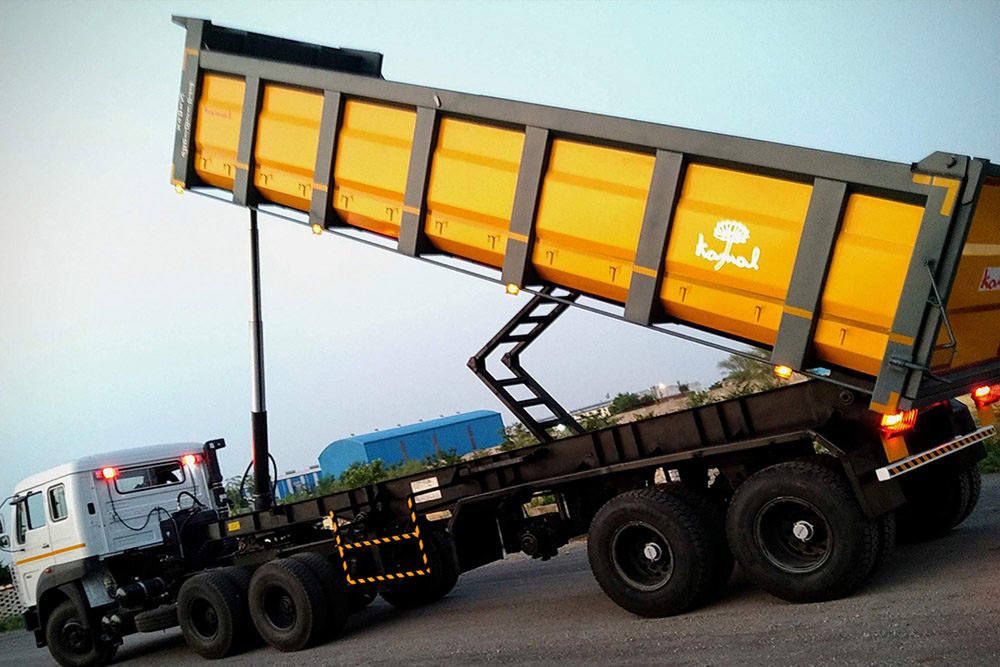

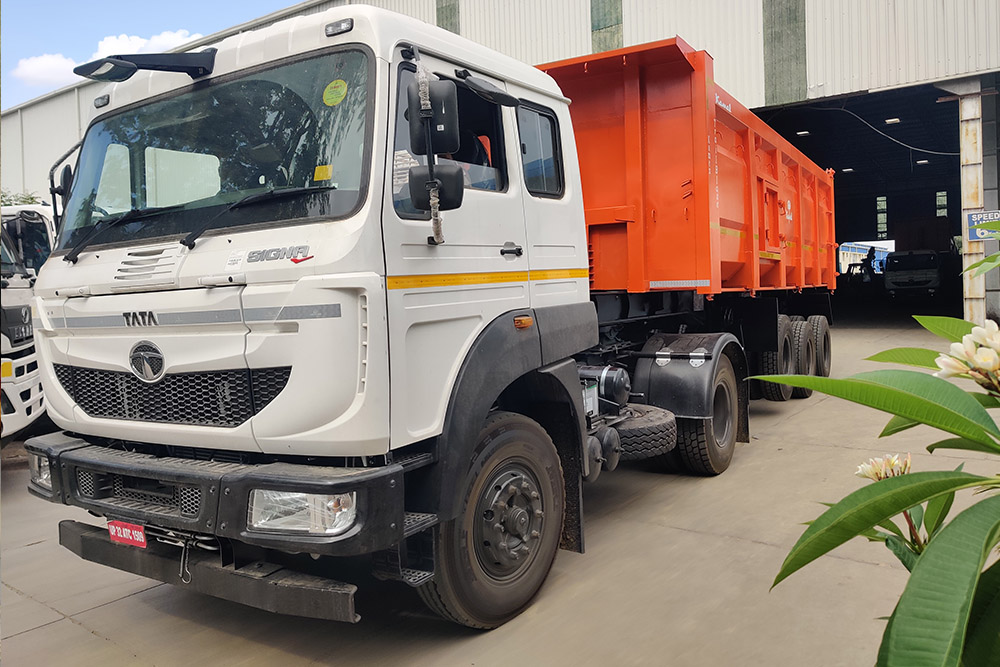

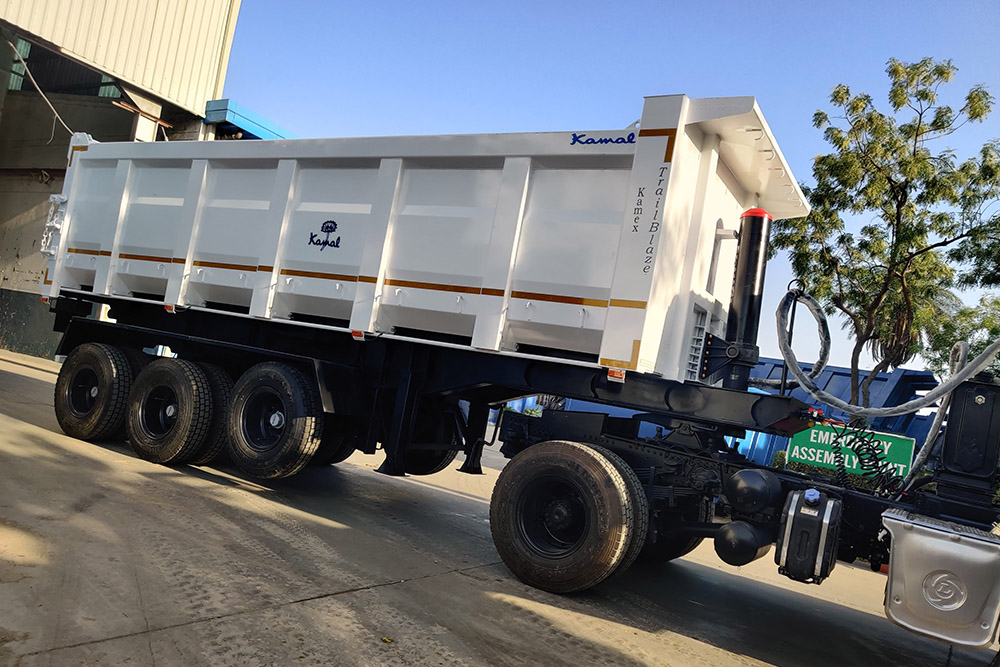

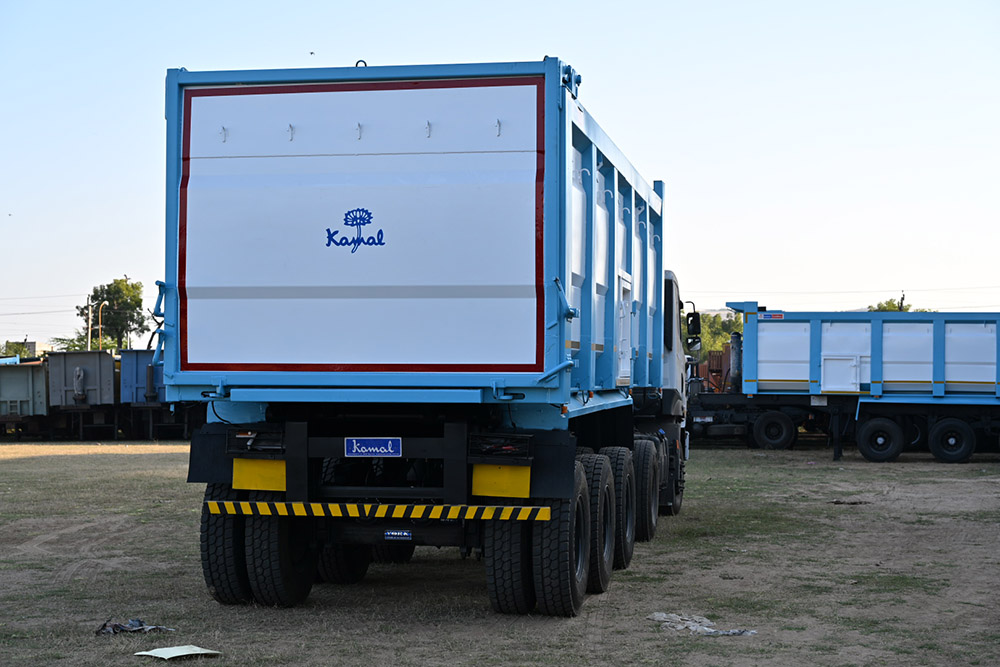

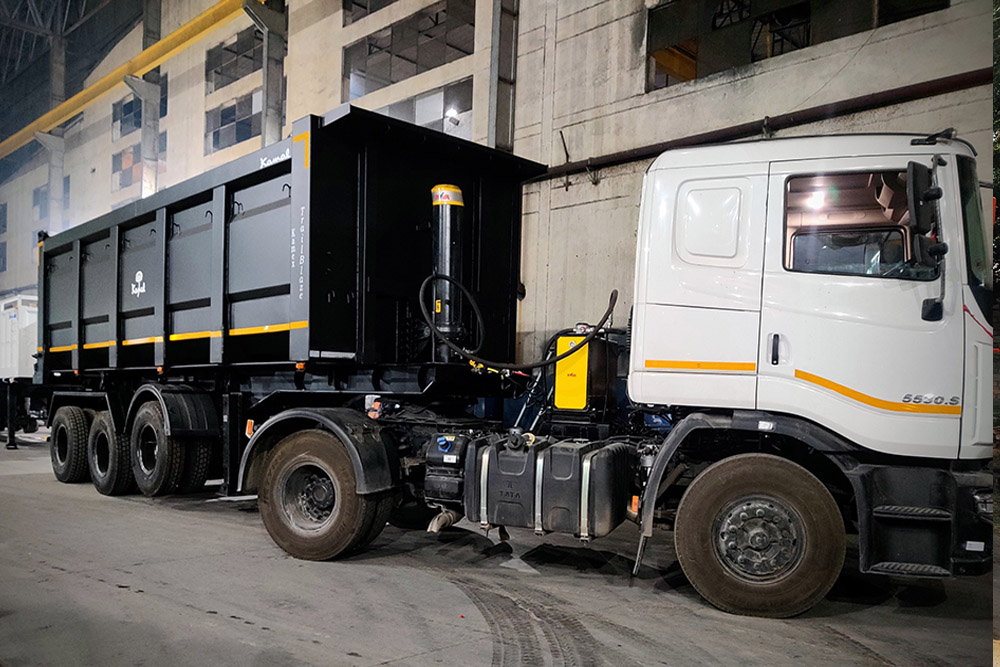

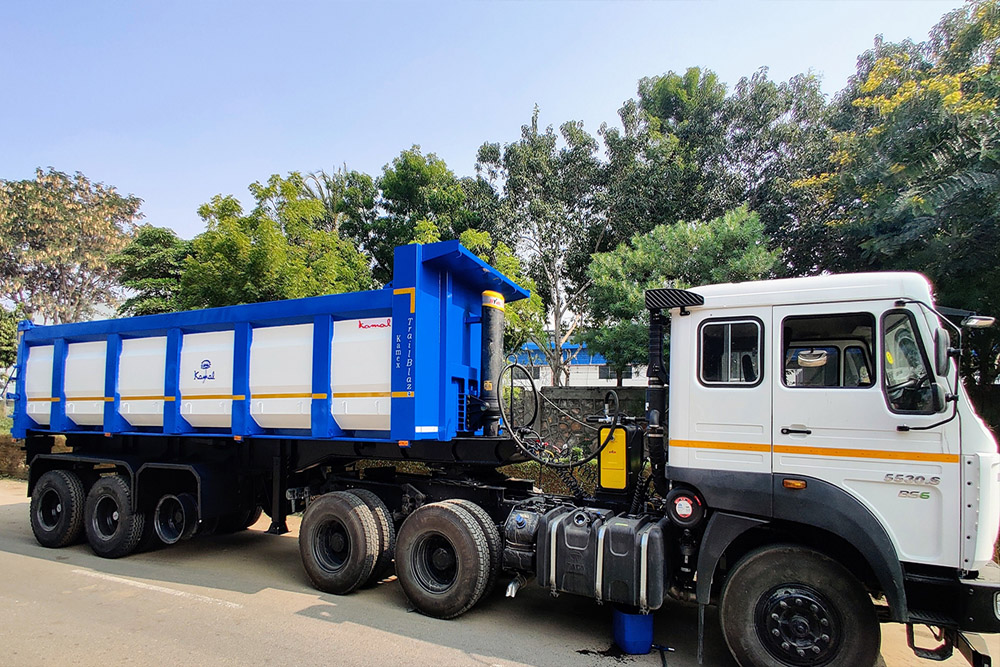

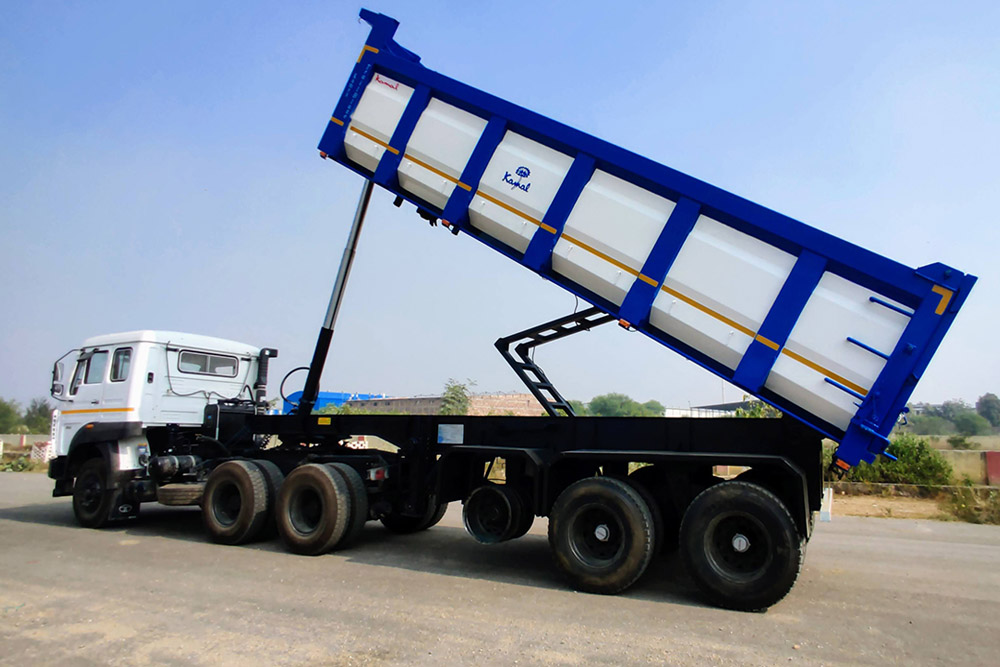

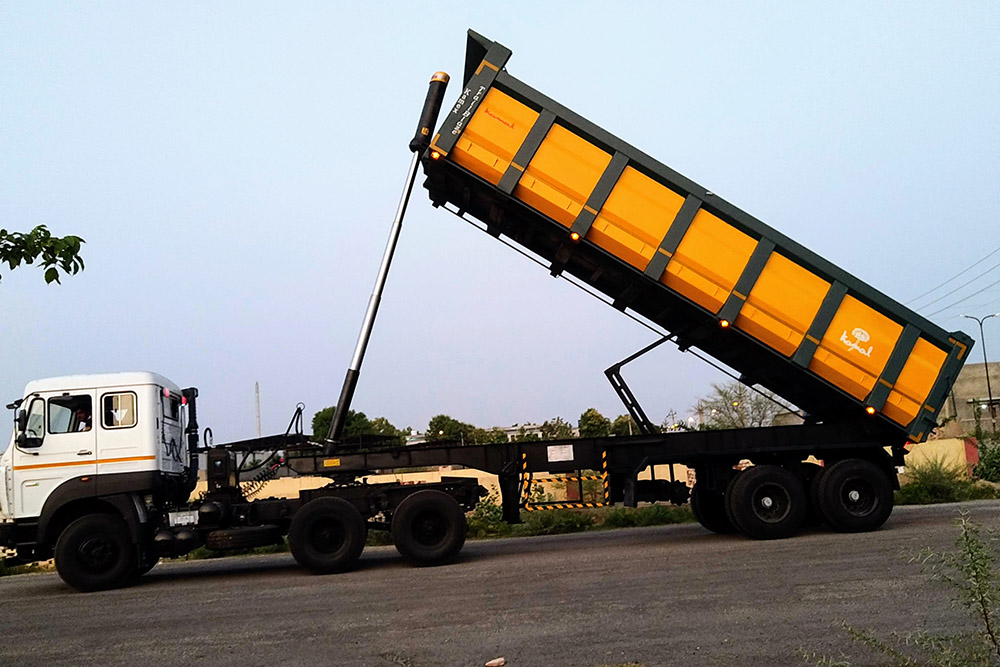

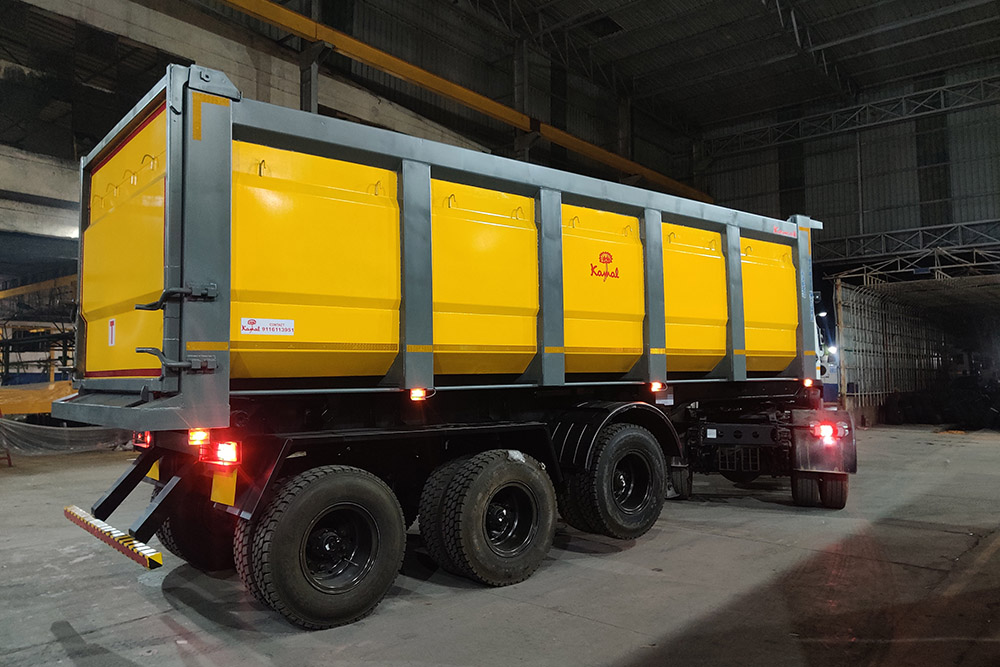

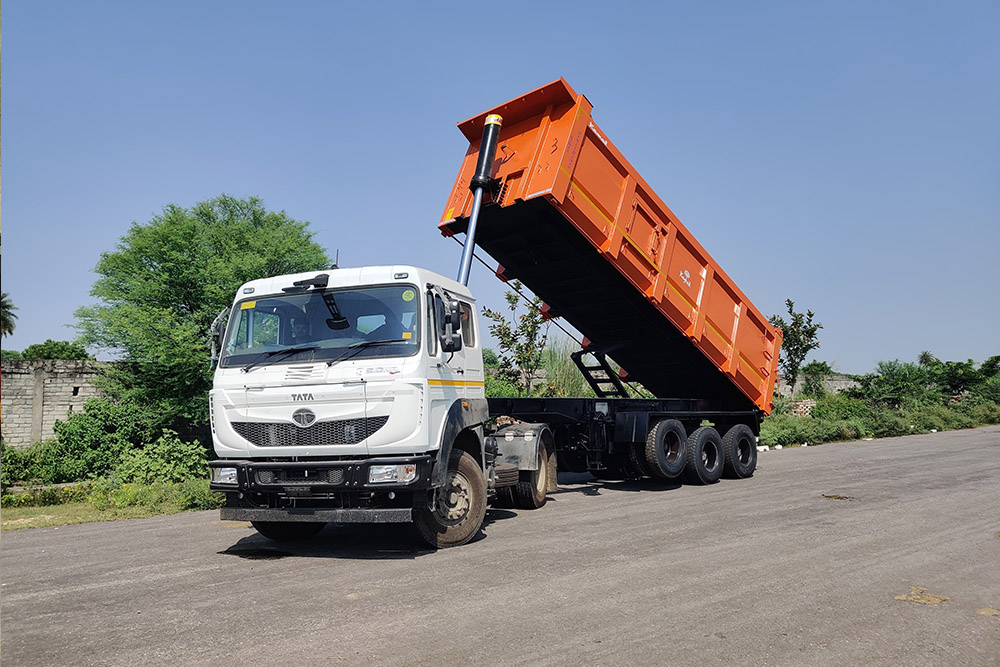

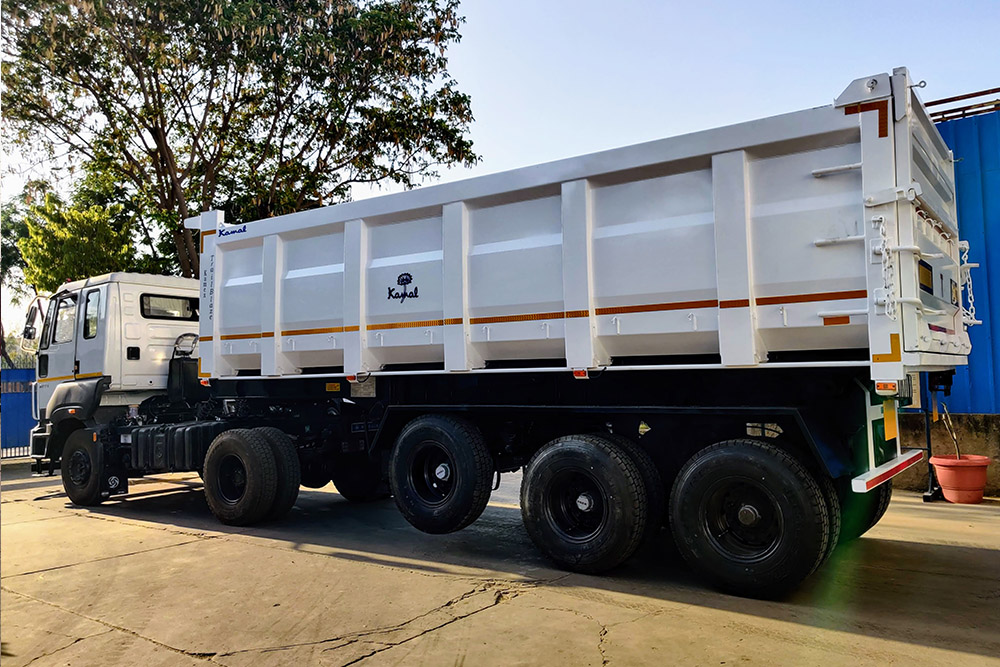

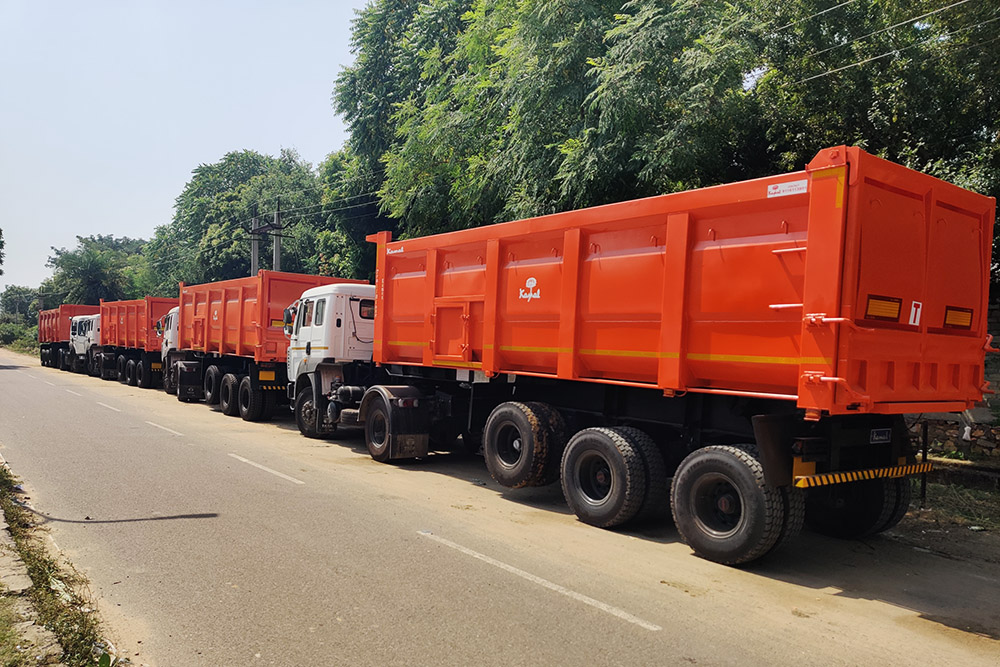

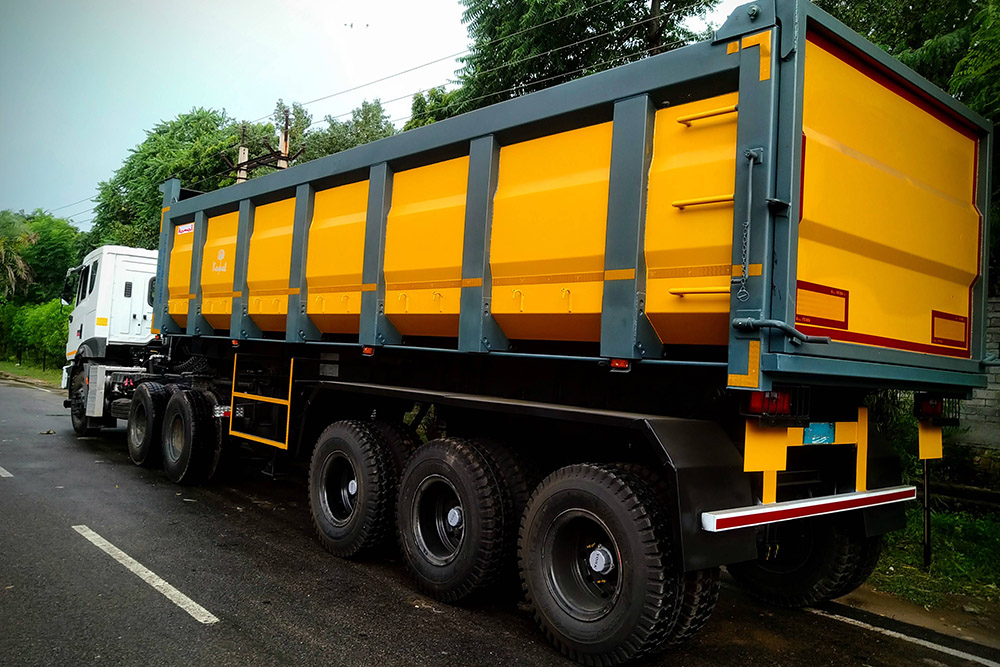

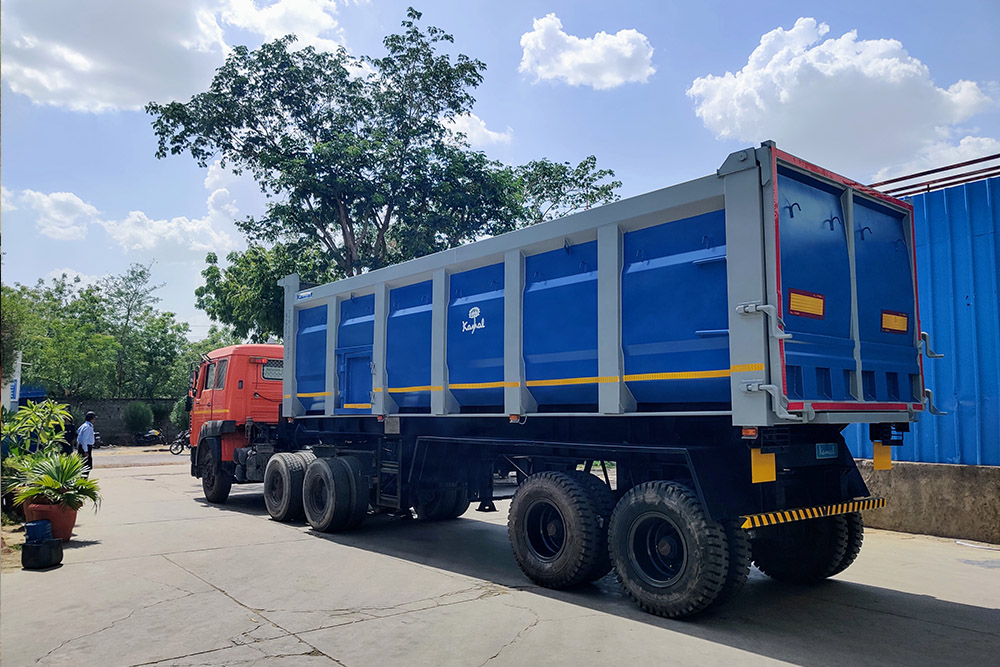

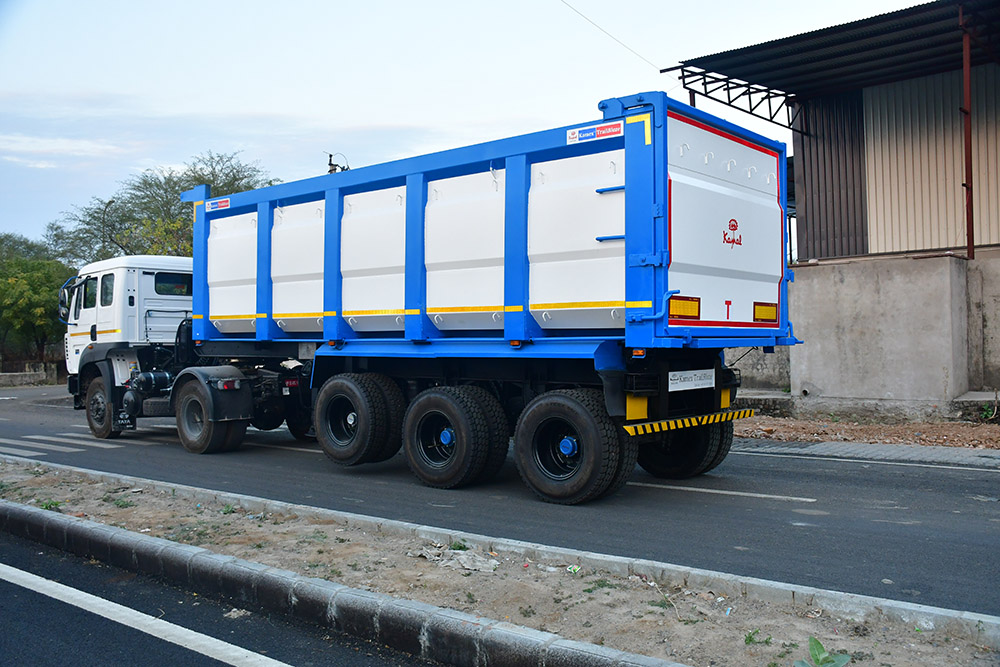

Our tip trailers are designed for safe and efficient transportation of bulk materials, including aggregates, agricultural products, and construction materials. They feature durable and reliable tipping mechanisms, high-capacity volumes, and secure and stable transportation, increasing productivity, reducing costs, and enhancing safety.
Size: |
30, 32, 34, 36, and 40 Cum |
Trailer Weight (Unladen): |
8-10 Ton (depending on size) |
Chassis: |
Chassis is Constructed Using 2 Nos. of Longitudinal Fabricated Members with high-strength steel (ST-52.3). Upper flange 10mm, web-08mm,Lower flange 16mm, Beam height 450mm. |
Hydraulic Jack : |
Hyva , Hydromass |
Landing Leg: |
Two-speed landing leg at the front end |
King Pin: |
2” king pin equivalent to IS: 6763 Part I |
Axles: |
12T/14T/16T (YORK/KROSS/TATA/HENDRICKSON) |
Suspension: |
Heavy-duty tridem/tandem/tandem + lifting combo axle |
Brakes: |
Twin/Webco line air brake system with coupled tractor brake system |
Paint: |
The coating process involves shot blasting, followed by primer, and finally paint |
Electrical System: |
24V or 12V |
Lighting: |
LED or halogen lights Safety Features |
Rear Underrun Protection: |
Yes |
Side Underrun Protection: |
Yes |
Reflectors and Markings: |
As per regulations |
| Non-interrupted performance | Easy to load and unload | ||
| Enhanced durability | Sturdy construction | ||
| Corrosion resistance | Long service life |
