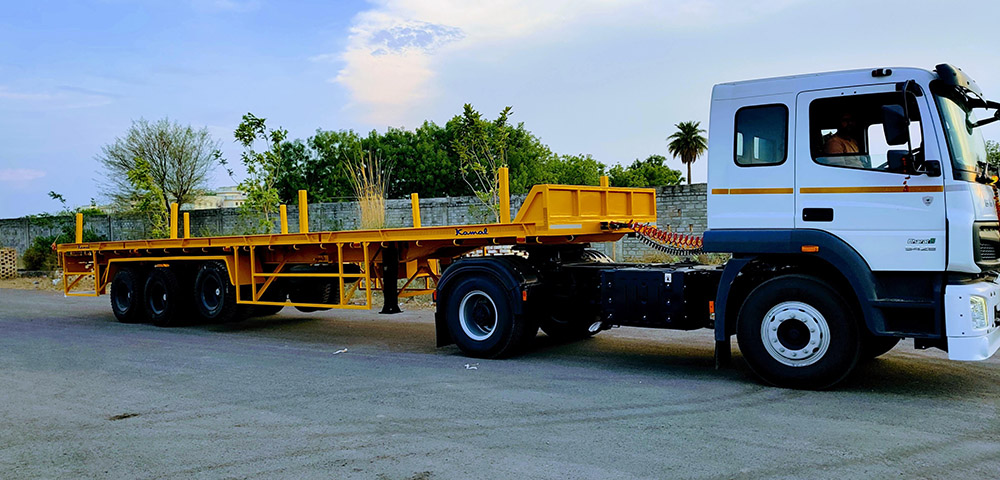

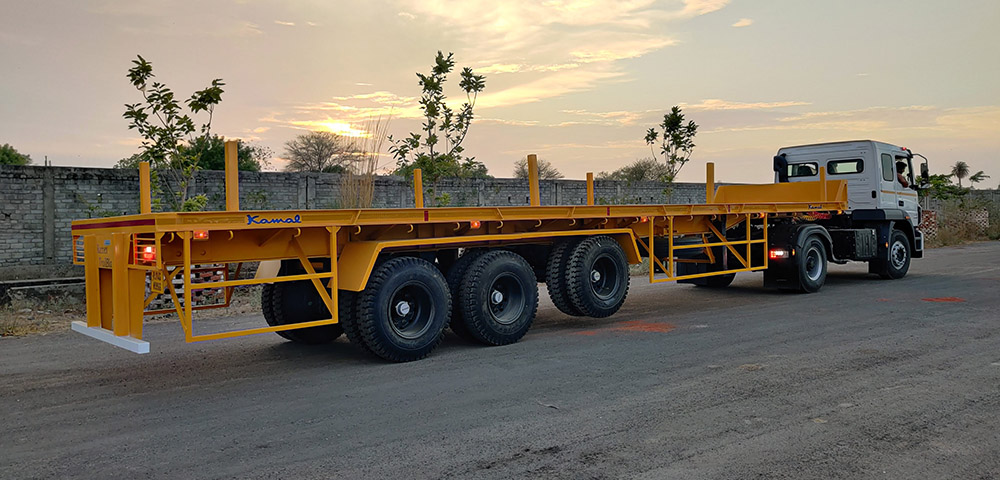

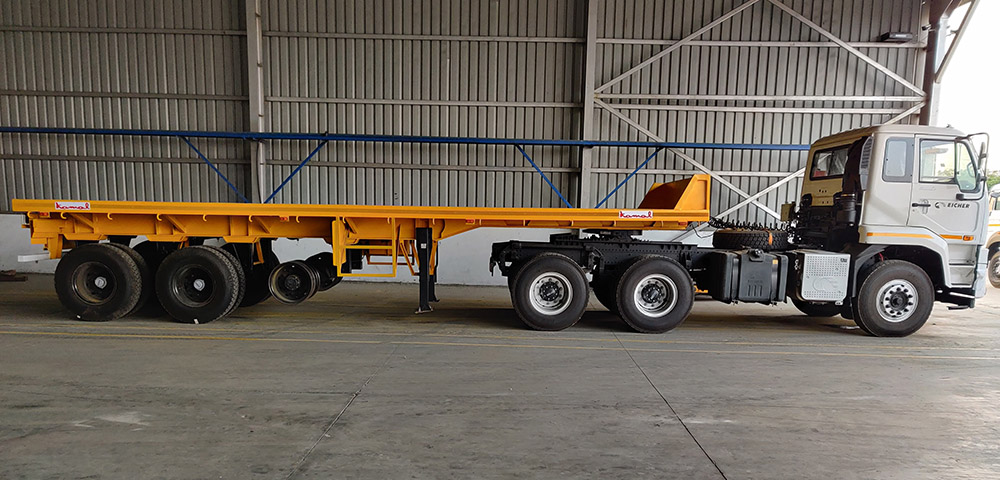

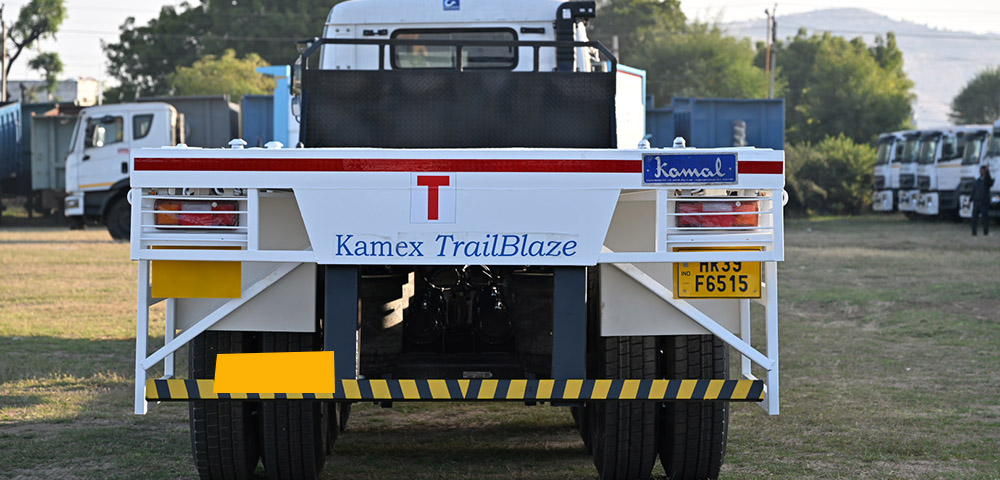

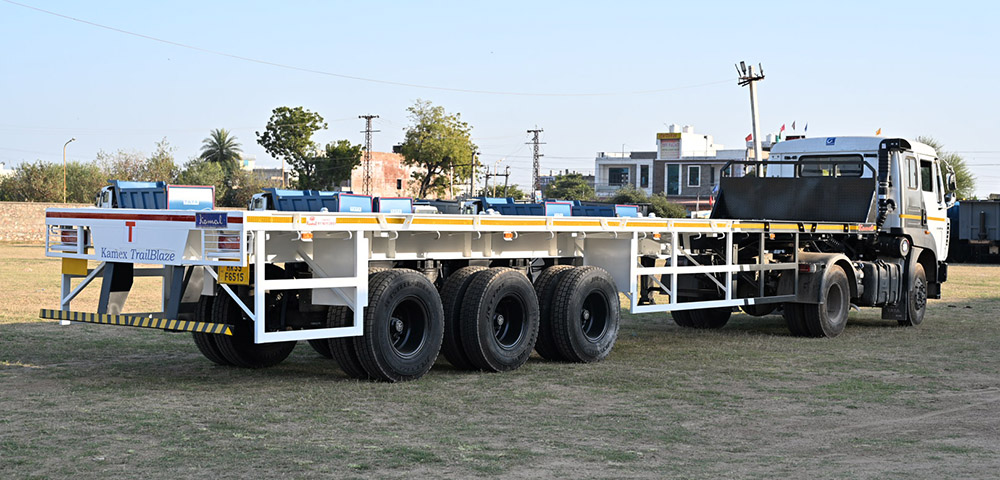

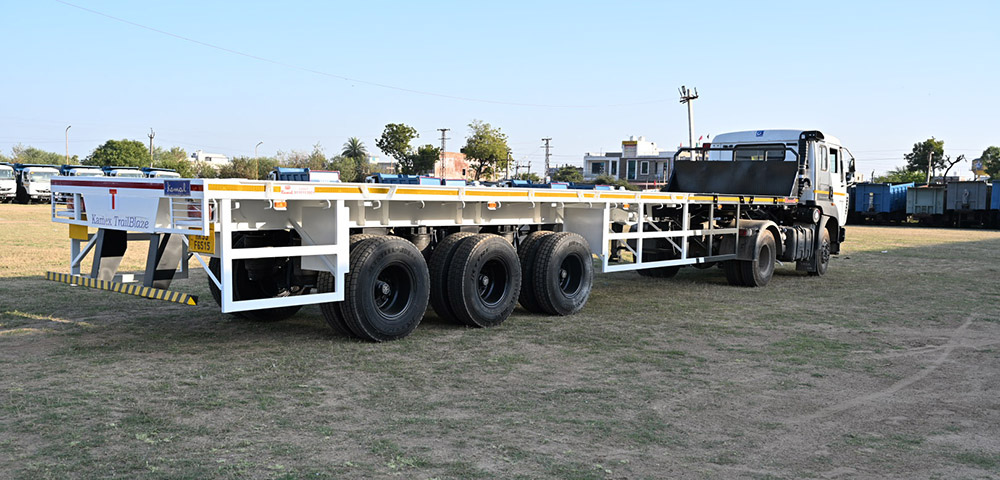

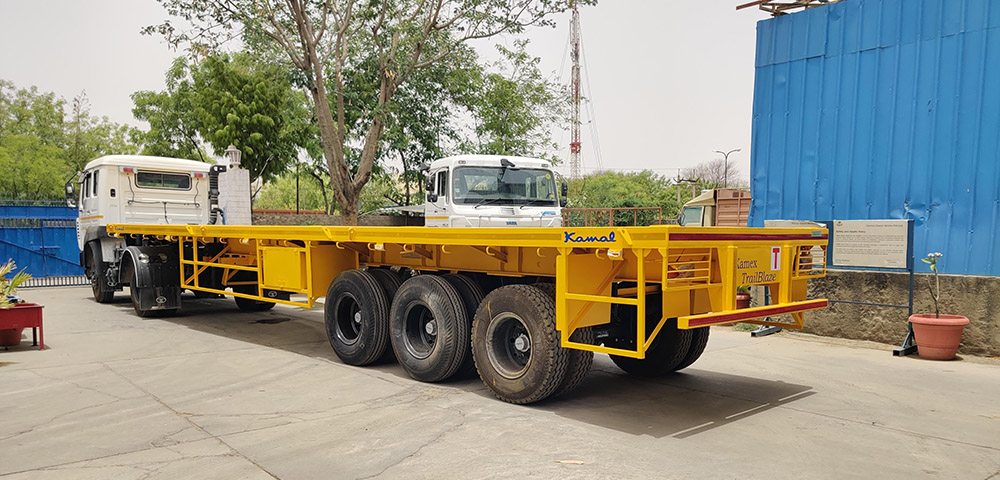

Our Flat Bed Trailers are built for the heaviest hauls, delivering unparalleled strength and durability to transport oversized cargo with ease and efficiency. With customizable options and robust construction, our trailers maximize payload capacity while minimizing downtime, making them ideal for construction, cargo, and heavy-duty hauling applications.
Size: |
28,30, 32, 34, 36, 40 and 42 Ft |
Trailer Weight (Unladen): |
7-8 Ton (depending on size) |
Chassis: |
Chassis is Constructed Using 2 Nos. of Longitudinal Fabricated Members with high-strength steel (ST-52.3). Upper flange 10mm, web-08mm,Lower flange 16mm, Beam height 450mm. |
Platform: |
Chq Sheet / Plain Sheet With folded cross members. |
Landing Leg: |
Two-speed landing leg at the front end |
King Pin: |
2” king pin equivalent to IS: 6763 Part I |
Axles: |
12T/14T/16T (YORK/KROSS/TATA/HENDRICKSON) |
Suspension: |
Heavy-duty tridem/tandem/tandem + lifting combo axle |
Brakes: |
Twin/Webco line air brake system with coupled tractor brake system |
Paint: |
The coating process involves shot blasting, followed by primer, and finally paint. |
| Non-interrupted performance | Easy to load and unload | ||
| Enhanced durability | Sturdy construction | ||
| Corrosion resistance | Long service life |
